GFEVT500系列熔斷器（10A-400A）450V500V dc

[附件: Download]

Dimensions (mm)

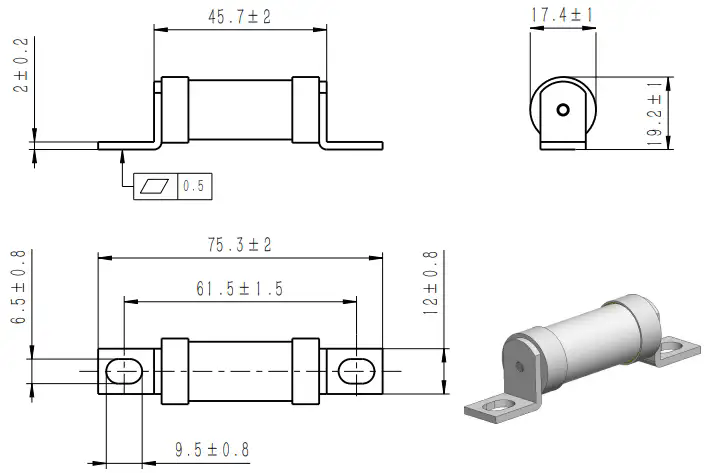

GFEVT500-18R Dimensions

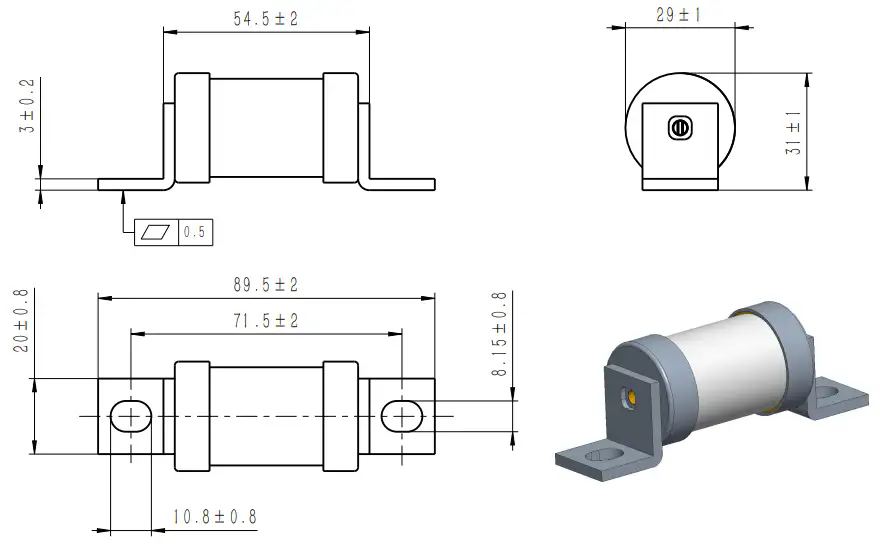

GFEVT500-30R Dimensions


GFEVT500-18R Dimensions

Description



  • Design for DC Applications
  • Excellent DC Performance
  • Superior cycling capability
  • Low Watt Losses

Standards & Approvals

  • References:
    • UL 248.1 / UL 248.13
    • IEC 60269.1 / IEC 60269.4
    • GB 13539.1 / GB 13539.4
    • JASO-D622
  • Manufacturing Compliance:
    • IATF16949 Quality System for Automotive Requirements
  • Certifications:
    • Reach Declaration Available Upon Request
    • CE
    • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components
  • Can be applied in parallel to realize greater ampacity within sizing guidelines
  • Excellent power of resisting voltaic impingement and environmental temperature variations
  • Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Part No. Fuse Amps Average @50KA/500Vdc Power Loss (W) Standard recommended bolts Installation torque
A2s Melting A2t Clearing 100% 推薦使用螺栓 推薦螺栓扭矩
GFEVT500-10A-18R 10A 7 13 3 M5 4.5±1.0N.m
GFEVT500-16A-18R 16A 7 51 9 M5 4.5±1.0N.m
GFEVT500-20A-18R 20A 32 231 7 M5 4.5±1.0N.m
GFEVT500-25A-18R 25A 32 263 7 M5 4.5±1.0N.m
GFEVT500-32A-18R 32A 34 316 9 M5 4.5±1.0N.m
GFEVT500-35A-18R 35A 35 345 9 M5 4.5±1.0N.m
GFEVT500-40A-18R 40A 108 460 9 M5 4.5±1.0N.m
GFEVT500-45A-18R 45A 114 518 11 M5 4.5±1.0N.m
GFEVT500-50A-18R 50A 126 690 11 M5 4.5±1.0N.m
GFEVT500-63A-18R 63A 149 900 12 M5 4.5±1.0N.m
GFEVT500-70A-18R 70A 231 1140 18 M5 4.5±1.0N.m
GFEVT500-80A-18R 80A 275 1800 20 M5 4.5±1.0N.m
GFEVT500-90A-18R 90A 418 2520 20 M5 4.5±1.0N.m
GFEVT500-100A-18R 100A 517 3360 24 M5 4.5±1.0N.m
GFEVT500-125A-30R 125A 1512 18690 24 M6 5.5±1.0N.m
GFEVT500-160A-30R 160A 2065 25534 32 M6 5.5±1.0N.m
GFEVT500-180A-30R 180A 2865 35534 36 M6 5.5±1.0N.m
GFEVT500-200A-30R 200A 3733 46153 38 M6 5.5±1.0N.m
GFEVT500-225A-38R 225A 3406 25883 50 M8 11±1.0N.m
GFEVT500-250A-38R 250A 4264 32402 60 M8 11±1.0N.m
GFEVT500-280A-38R 280A 7346 55817 66 M8 11±1.0N.m
GFEVT500-315A-38R 315A 9755 74124 74 M8 11±1.0N.m
GFEVT500-350A-38R 350A 12597 95718 79 M8 11±1.0N.m
GFEVT500-400A-38R 400A 35100 266700 81 M8 11±1.0N.m
