產品展示當前位置：首頁 > 產品展示
GFBFG4-D-105ES 儲能熔斷器400A-2000A 1500V dc

[附件: Download]

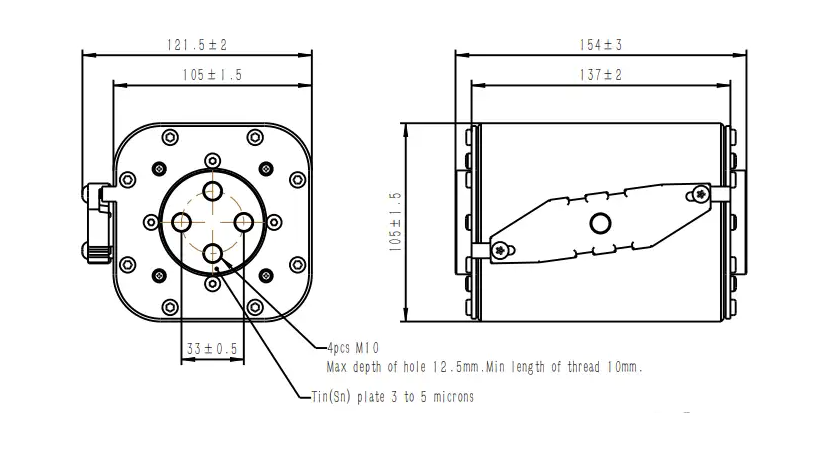

Dimensions (mm) 尺寸


Description


  • Design For DC Applications
  • Excellent Dc Performance
  • Superior cycling capability
  • Application: Industrial ESS

Standards / Approvals

  • Refer To UL 248-13
  • Reach Declaration Available Upon Request
  • CE
  • RoHS Compliant

Work/Storage condition

  • Work within the temperature -40℃ to +85℃ range
  • Fuses should be stored in their original boxes under typical warehouse conditions for electromechanical products (free from any dirt and dust). Storage conditions should be no more than 70 percent relative humidity and in the -40℃ to +85℃ range.
  • This product is a bolt connected fuse for partial range protection, with strong current limiting, high breaking capacity and other characteristics.
  • It is suitable for energy storage, wind power and other industry applications, which can be used as short-circuit protection for energy storage systems, power systems and other devices and equipments.

Fuse Ratings

Part No. Fuse Size Average @ 50KA/1500Vdc Power Loss (W) 1.0In
Amps A2s Melting A2s Clearing
GFBFG4-400D-105ES 400 4 # 42,250 255,800 168
GFBFG4-500D-105ES 500 4 # 93,500 585,500 175
GFBFG4-630D-105ES 630 4 # 163,000 1,020,500 185
GFBFG4-700D-105ES 700 4 # 225,500 1,320,000 192
GFBFG4-800D-105ES 800 4 # 310,000 1,970,000 196
GFBFG4-900D-105ES 900 4 # 425,000 2,600,000 200
GFBFG4-1000D-105ES 1000 4 # 640,000 4,005,000 210
GFBFG4-1100D-105ES 1100 4 # 780,300 4,950,000 220
GFBFG4-1200D-105ES 1200 4 # 915,000 5,865,500 242
GFBFG4-1250D-105ES 1250 4 # 1,080,000 7,150,600 255
GFBFG4-1300D-105ES 1300 4 # 1,300,000 8,040,000 260
GFBFG4-1350D-105ES 1350 4 # 1,320,000 9,060,000 266
GFBFG4-1400D-105ES 1400 4 # 1,665,000 10,700,000 275
GFBFG4-1500D-105ES 1500 4 # 1,870,000 11,950,500 282
GFBFG4-1600D-105ES 1600 4 # 2,235,000 14,880,000 294
GFBFG4-1800D-105ES 1800 4 # 2,850,000 17,950,000 313
*GFBFG4-2000D-105ES *2000 4 # 3,750,000 23,900,000 345
*：If there are any requirements, please communicate with the original factory staff first.
