產品展示當前位置：首頁 > 產品展示
GFEVT1000-B-59E高速熔斷器（100A-800A）1000dc

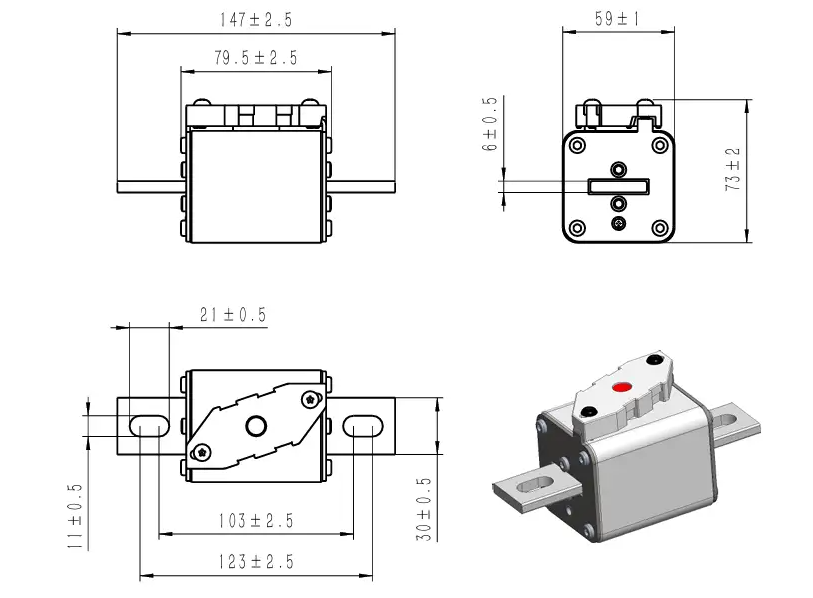

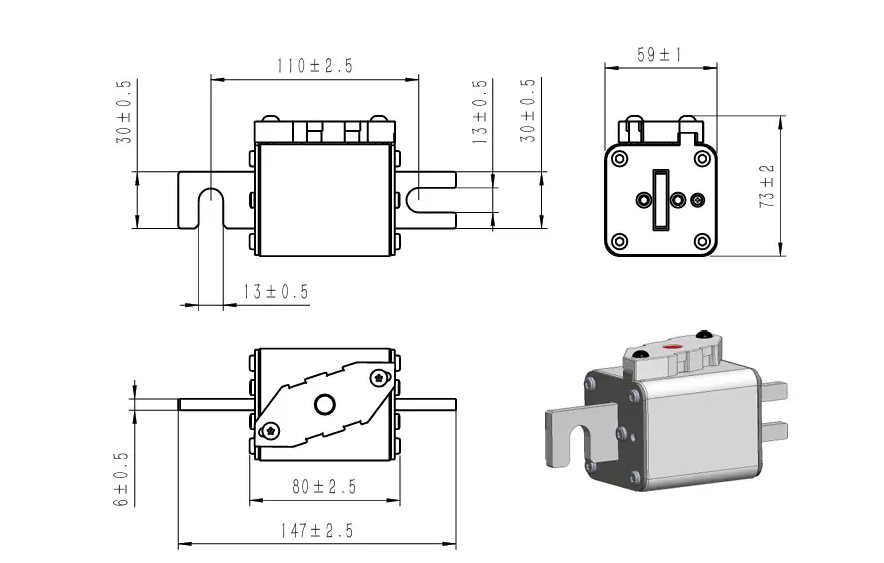

Dimensions (mm)


Customize xxxK-59EBolted xxxB-59E


Description



  • Design For DC Applications
  • Excellent DC Performance
  • Low Watt Losses

Standards / Approvals

  • Refer To UL 248.1 / UL 248.13
  • IEC 60269.1 / IEC 60269.4
  • Reach Declaration Available Upon Request
  • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% ROHS REACH
 Bolted GFEVT1000-100B-59E 100A 2# 1,320 8,680 75

GFEVT1000-125B-59E 125A 2# 1,880 12,400 80

GFEVT1000-160B-59E 160A 2# 2,690 17,710 85

GFEVT1000-200B-59E 200A 2# 3,840 25,300 90

GFEVT1000-250B-59E 250A 2# 5,490 36,150 98

GFEVT1000-275B-59E 275A 2# 7,900 52,170 105

GFEVT1000-315B-59E 315A 2# 10,900 72,850 113

GFEVT1000-350B-59E 350A 2# 13,900 91,650 120

GFEVT1000-400B-59E 400A 2# 19,450 131,600 128

GFEVT1000-450B-59E 450A 2# 30,950 192,700 135

GFEVT1000-500B-59E 500A 2# 43,680 267,900 143

GFEVT1000-550B-59E 550A 2# 56,420 347,800 150

GFEVT1000-630B-59E 630A 2# 104,650 540,500 180

GFEVT1000-700B-59E 700A 2# 145,930 739,350 188

GFEVT1000-800B-59E 800A 2# 223,440 1,160,000 195

Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% ROHS REACH
Customize GFEVT1000-100K-59E 100A 2# 1,320 8,680 75

GFEVT1000-125K-59E 125A 2# 1,880 12,400 80

GFEVT1000-160K-59E 160A 2# 2,690 17,710 85

GFEVT1000-200K-59E 200A 2# 3,840 25,300 90

GFEVT1000-250K-59E 250A 2# 5,490 36,150 98

GFEVT1000-275K-59E 275A 2# 7,900 52,170 105

GFEVT1000-315K-59E 315A 2# 10,900 72,850 113

GFEVT1000-350K-59E 350A 2# 13,900 91,650 120

GFEVT1000-400K-59E 400A 2# 19,450 131,600 128

GFEVT1000-450K-59E 450A 2# 30,950 192,700 135

GFEVT1000-500K-59E 500A 2# 43,680 267,900 143

GFEVT1000-550K-59E 550A 2# 56,420 347,800 150

GFEVT1000-630K-59E 630A 2# 104,650 540,500 180

GFEVT1000-700K-59E 700A 2# 145,930 739,350 188

GFEVT1000-800K-59E 800A 2# 223,440 1,160,000 195

  • I2t 1000Vdc 50kA，T：＜5ms；DC allows the maximum voltage：1048V
