GFEVT1500-N-74E 高速熔斷器 100A-1250A 1500Vdc

[附件: Download]

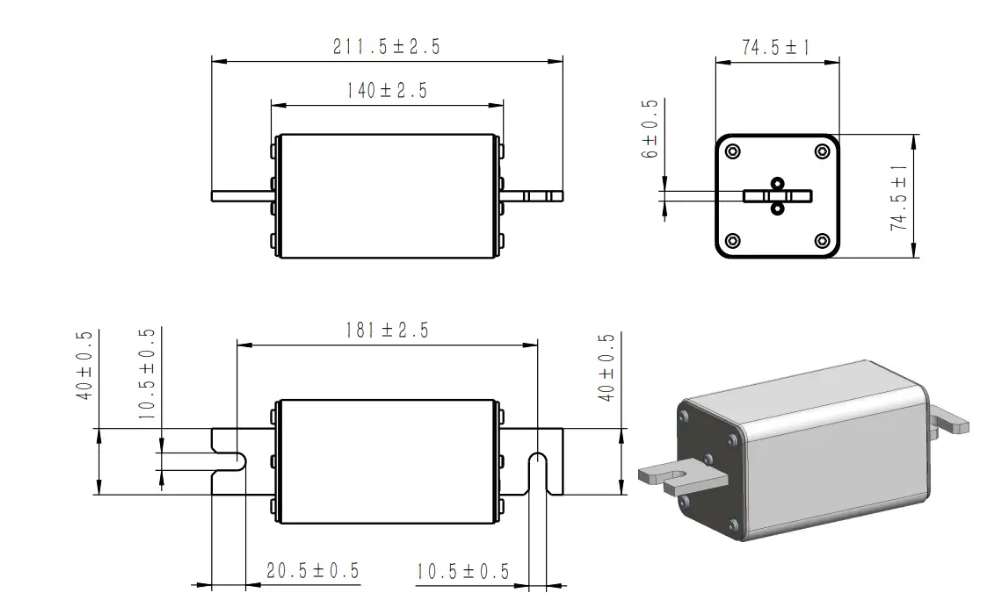

Dimensions (mm)

Din xxxBN-74E Dimensions


Bolted xxxBN-74E Dimensions

Description

  • Designed for DC applications
  • Excellent DC performance
  • Superior cycling capability
  • Low watt losses

Standards & Approvals

  • Refer to UL 248.1 / UL 248.13
  • IEC 60269.1 / IEC 60269.4
  • RoHS compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage
  • Up to ten times faster opening under high fault current conditions ensures reliable protection of circuits and components
  • Greater ampacity within sizing guidelines
  • Excellent resistance to voltaic impingement and environmental temperature tolerance
  • Exceptional resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Average @250KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2s Clearing 80% 100% ROHS REACH
Bolted GFEVT1500-100BN-74E 100A 1150 4680 48 60 ● ●
GFEVT1500-125BN-74E 125A 1750 8350 52 68 ● ●
GFEVT1500-160BN-74E 160A 3800 14000 68 90 ● ●
GFEVT1500-200BN-74E 200A 5200 23500 82 110 ● ●
GFEVT1500-250BN-74E 250A 10400 45000 92 120 ● ●
GFEVT1500-315BN-74E 315A 21238 76760 104 136 ● ●
GFEVT1500-350BN-74E 350A 29180 104691 113 148 ● ●
GFEVT1500-400BN-74E 400A 38468 136083 130 171 ● ●
GFEVT1500-450BN-74E 450A 54749 192815 143 187 ● ●
GFEVT1500-500BN-74E 500A 74371 259379 155 204 ● ●
GFEVT1500-550BN-74E 550A 93073 317075 169 221 ● ●
GFEVT1500-630BN-74E 630A 131578 437610 189 248 ● ●
GFEVT1500-700BN-74E 700A 182476 593977 202 273 ● ●
GFEVT1500-800BN-74E 800A 283377 893774 218 294 ● ●
GFEVT1500-900BN-74E 900A 408596 1247411 237 305 ○ ○
GFEVT1500-1000BN-74E 1000A 546988 1605152 282 362 ○ ○
GFEVT1500-1100BN-74E 1100A 751540 2129888 300 385 ○ ○
GFEVT1500-1200BN-74E 1200A 991418 2779209 305 391 ○ ○
*GFEVT1500-1250BN-74E *1250A 1121162 3162024 314 401 ○ ○

Connect Part No. Fuse Amps Average @250KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2s Clearing 80% 100% ROHS REACH
Din GFEVT1500-100UN-74E 100A 1150 4680 48 60 ● ●
GFEVT1500-125UN-74E 125A 1750 8350 52 68 ● ●
GFEVT1500-160UN-74E 160A 3800 14000 68 90 ● ●
GFEVT1500-200UN-74E 200A 5200 23500 82 110 ● ●
GFEVT1500-250UN-74E 250A 10400 45000 92 120 ● ●
GFEVT1500-315UN-74E 315A 21238 76760 104 136 ● ●
GFEVT1500-350UN-74E 350A 29180 104691 113 148 ● ●
GFEVT1500-400UN-74E 400A 38468 136083 130 171 ● ●
GFEVT1500-450UN-74E 450A 54749 192815 143 187 ● ●
GFEVT1500-500UN-74E 500A 74371 259379 155 204 ● ●
GFEVT1500-550UN-74E 550A 93073 317075 169 221 ● ●
GFEVT1500-630UN-74E 630A 131578 437610 189 248 ● ●
GFEVT1500-700UN-74E 700A 182476 593977 202 273 ● ●
GFEVT1500-800UN-74E 800A 283377 893774 218 294 ● ●
GFEVT1500-900UN-74E 900A 408596 1247411 237 305 ○ ○
GFEVT1500-1000UN-74E 1000A 546988 1605152 282 362 ○ ○
GFEVT1500-1100UN-74E 1100A 751540 2129888 300 385 ○ ○
GFEVT1500-1200UN-74E 1200A 991418 2779209 305 391 ○ ○
*GFEVT1500-1250UN-74E *1250A 1121162 3162024 314 401 ○ ○
