GFEVT1500-A-59ES高速熔斷器 100A-630A 1500Vdc

[附件: Download]

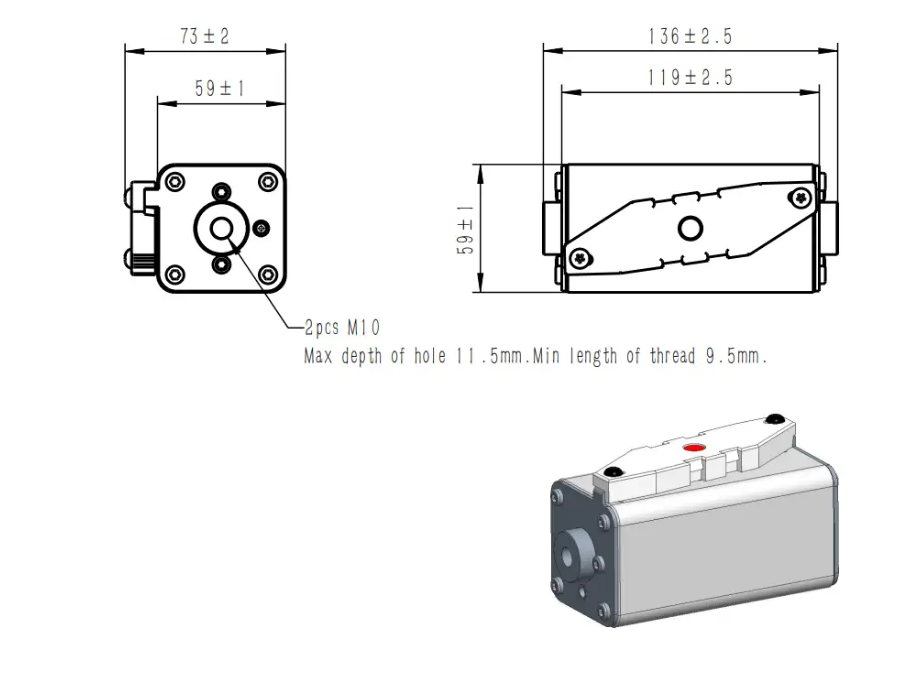

Dimensions (mm)


Description


  • Design For DC Applications
  • Excellent DC Performance
  • Superior Cycling Capability
  • Low Watt Losses

Standards / Approvals

  • Refer To UL 248.1 / UL 248.13
  • IEC 60269.1 / IEC 60269.4
  • Reach Declaration Available Upon Request
  • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Average @50KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 80% 100% REACH ROHS
Flush-end contact GFEVT1500-100A-59ES 100A 2370 8857 41 53 ● ●
GFEVT1500-125A-59ES 125A 4890 13219 47 60 ● ●
GFEVT1500-160A-59ES 160A 7192 19440 50 64 ● ●
GFEVT1500-200A-59ES 200A 11066 29907 68 86 ● ●
GFEVT1500-250A-59ES 250A 17940 48480 86 107 ● ●
GFEVT1500-315A-59ES 315A 30568 82610 102 127 ● ●
GFEVT1500-350A-59ES 350A 40655 109878 109 136 ● ●
GFEVT1500-400A-59ES 400A 58496 158090 121 151 ● ●
GFEVT1500-450A-59ES 450A 78890 213215 128 161 ○ Pending ○ Pending
GFEVT1500-500A-59ES 500A 101503 274330 139 174 ○ Pending ○ Pending
GFEVT1500-550A-59ES 550A 125982 340490 155 194 ○ Pending ○ Pending
GFEVT1500-630A-59ES 630A 185020 500100 162 203 ○ Pending ○ Pending
