GFBFG4-S-105E 儲能熔斷器（ESS）400A-2000A 1500V

[附件: Download]

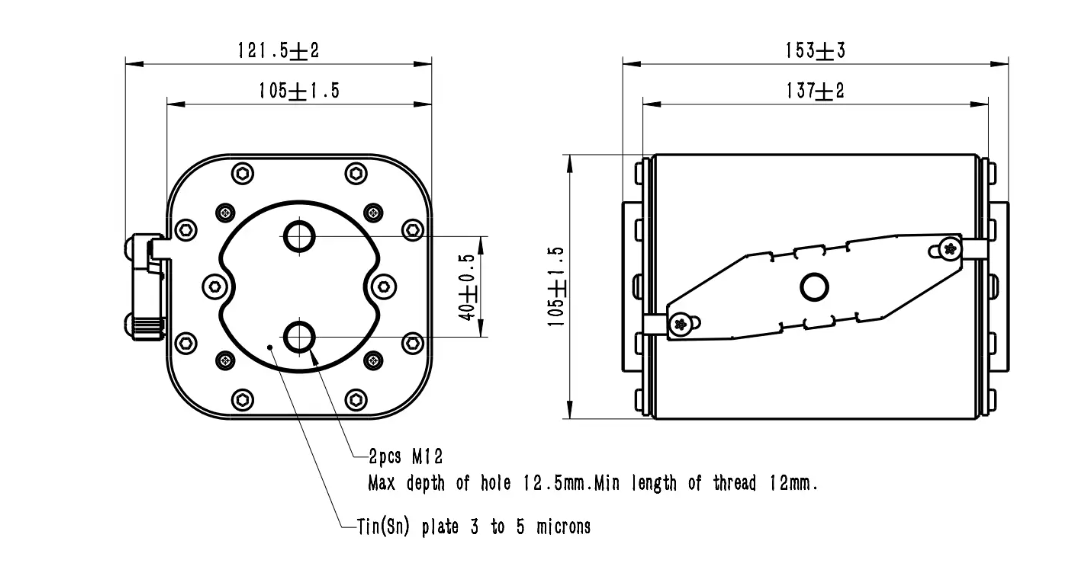

Dimensions (mm)


Description


Standards & Approvals

  • Refer to UL 248-13
  • Reach declaration available upon request
  • CE certified
  • RoHS compliant

Work/Storage Conditions

  • Operating temperature: -40℃ to +85℃
  • Storage:
    • Fuses should be stored in their original packaging under clean, dust-free conditions
    • Storage conditions should not exceed 70% relative humidity
    • Storage temperature range: -40℃ to +85℃

Features & Benefits

  • Bolt-connected fuse designed for partial range protection
  • Strong current limiting and high breaking capacity
  • Suitable for energy storage, wind power, and other industrial applications
  • Provides short-circuit protection for energy storage systems, power systems, and other equipment

Fuse Ratings

Part No. Fuse Size Average @ 250KA/1500Vdc Power Loss (W) 1.0In
Amps A2s Melting A2s Clearing
GFBFG4-400S-105E 400 4 # 42,500 267,800 165
GFBFG4-500S-105E 500 4 # 93,700 593,500 172
GFBFG4-630S-105E 630 4 # 165,000 1,060,000 184
GFBFG4-700S-105E 700 4 # 223,500 1,420,000 190
GFBFG4-800S-105E 800 4 # 317,000 2,010,000 194
GFBFG4-900S-105E 900 4 # 443,000 2,800,500 203
GFBFG4-1000S-105E 1000 4 # 665,000 4,190,000 210
GFBFG4-1100S-105E 1100 4 # 795,600 5,050,400 220
GFBFG4-1200S-105E 1200 4 # 954,000 6,065,670 243
GFBFG4-1250S-105E 1250 4 # 1,154,000 7,250,780 255
GFBFG4-1300S-105E 1300 4 # 1,331,000 8,520,500 261
GFBFG4-1350S-105E 1350 4 # 1,450,000 9,140,800 268
GFBFG4-1400S-105E 1400 4 # 1,765,000 11,200,500 273
GFBFG4-1500S-105E 1500 4 # 1,934,000 12,175,530 280
GFBFG4-1600S-105E 1600 4 # 2,435,000 15,580,500 291
GFBFG4-1800S-105E 1800 4 # 3,045,000 19,200,700 310
*GFBFG4-2000S-105E *2000 4 # 4,050,000 25,820,000 348
* If there are any requirements, please communicate with the original factory staff first.
