GFEVF1000高速熔斷器（30A-800A)800V1000Vdc

[附件: Download]

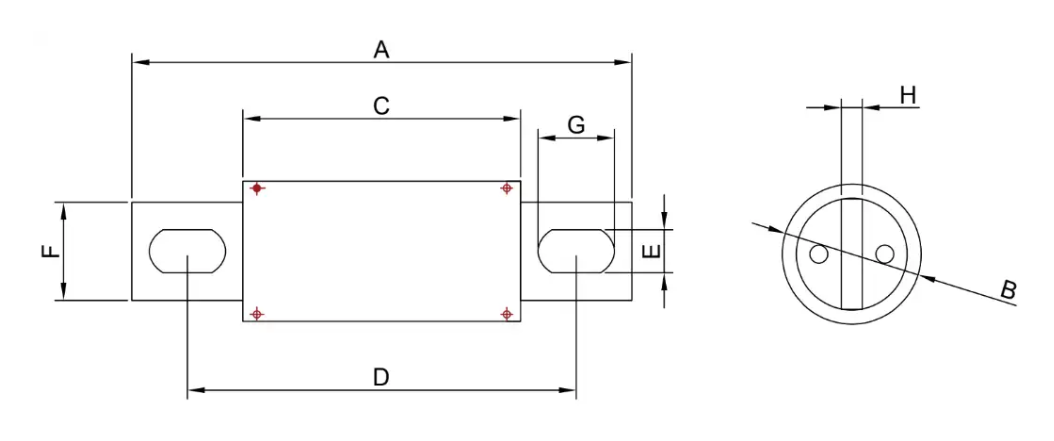

Dimensions (mm)


S. Amps A±1.5 B±1 C±1 D±1.5 E±1.5 F±0.5 H±0.5 G±0.5
26R 30-150A 127.00 26.00 79.00 103.00 8.50 20.00 3.00 13.00
38R 125-400A 142.00 38.00 85.00 113.50 10.50 25.00 6.00 20.00
51R 225-800A 145.00 51.00 88.00 116.50 10.50 40.00 6.00 20.00


Description

  • Design For DC Applications
  • Excellent DC Performance
  • Low arc voltage and low energy let-through (I2t)
  • Superior cycling capability
  • Low Watt Losses

Standards & Approvals

  • Refer To UL248.13 or IEC60269.4
  • Approvals: , CE
  • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Can be applied in parallel to realize greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Rated Current Catalog no. Average @50KA/1000Vdc Watts Loss Approvals
Melting A2S Clearing A2S ROHS
26 mm diameter case 30 30A GFEVF1000-30A-26R 158 1360 9 ●
35 35A GFEVF1000-35A-26R 218 1751 10 ●
40 40A GFEVF1000-40A-26R 312 2189 11 ●
50 50A GFEVF1000-50A-26R 489 3064 14 ●
60 60A GFEVF1000-60A-26R 697 4378 16 ●
70 70A GFEVF1000-70A-26R 1144 6041 17 ●
80 80A GFEVF1000-80A-26R 1612 8492 19 ●
90 90A GFEVF1000-90A-26R 1976 9888 20 ●
100 100A GFEVF1000-100A-26R 2912 14420 22 ●
125 125A GFEVF1000-125A-26R 4536 28462 27 ●
150 150A GFEVF1000-150A-26R 6218 35438 42 ●
Rated Current Catalog no. Average @50KA/1000Vdc Watts Loss Approvals
Melting A2S Clearing A2S ROHS
38 mm diameter case 125 125A GFEVF1000-125A-38R 5040 32582 23 ●
150 150A GFEVF1000-150A-38R 6615 41891 36 ●
175 175A GFEVF1000-175A-38R 7875 60509 43 ●
200 200A GFEVF1000-200A-38R 12285 74472 46 ●
225 225A GFEVF1000-225A-38R 14320 84199 59 ●
250 250A GFEVF1000-250A-38R 15624 103219 77 ●
275 275A GFEVF1000-275A-38R 16800 111800 84 ●
300 300A GFEVF1000-300A-38R 25415 149404 94 ●
350 350A GFEVF1000-350A-38R 34477 209377 104 ●
400 400A GFEVF1000-400A-38R 43083 289502 112 ●
Rated Current Catalog no. Average @50KA/1000Vdc Watts Loss Approvals
Melting A2S Clearing A2S ROHS
51 mm diameter case 225 225A GFEVF1000-225A-51R 17184 91941 59 ●
250 250A GFEVF1000-250A-51R 20160 113848 72 ●
275 275A GFEVF1000-275A-51R 23655 136780 78 ●
300 300A GFEVF1000-300A-51R 29857 157932 80 ●
350 350A GFEVF1000-350A-51R 41927 222453 89 ●
400 400A GFEVF1000-400A-51R 54874 309150 96 ●
450 450A GFEVF1000-450A-51R 61057 337500 111 ●
500 500A GFEVF1000-500A-51R 67209 351880 136 ●
550 550A GFEVF1000-550A-51R 70450 389650 142 ●
600 600A GFEVF1000-600A-51R 73658 495196 150 ●
630 630A GFEVF1000-630A-51R 82777 518336 163 ●
700 700A GFEVF1000-700A-51R 201653 634500 208 ●
800 800A GFEVF1000-800A-51R 239085 744930 241 ●
  • ：Time Constant：2.5+0.5 ms

Applications

  • Electrical Energy Storage
  • Disconnect or Maintenance Safety Disconnect
  • EV/HEV
  • Battery Pack Protection
  • Backup Protection For DC Relay
