GFEVT1000-74E高速熔斷器315A-1400A 1000Vdc


[附件: Download]

Dimensions (mm)

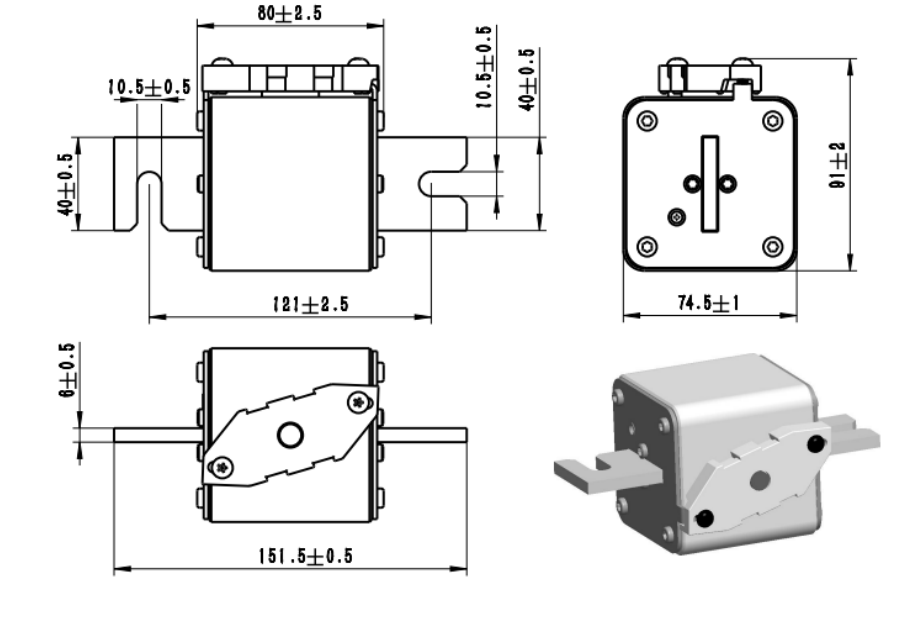

Bolted xxxB-74E Dimensions

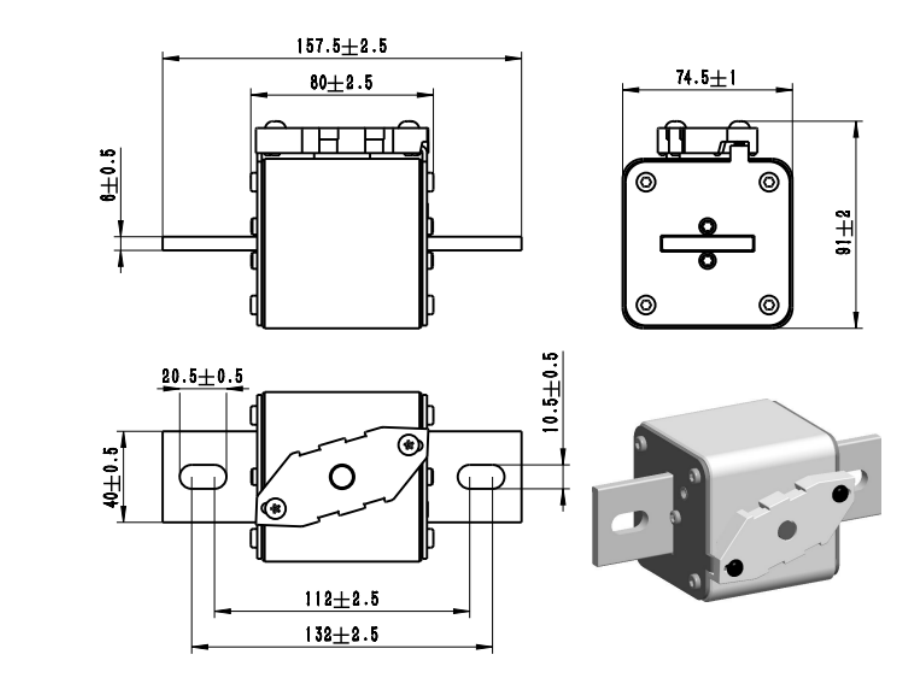

Custom xxxB-74E Dimensions

Description



  • Design For DC Applications
  • Excellent DC Performance
  • Superior Cycling Capability
  • Low Watt Losses

Standards / Approvals

  • Refer To: UL 248.1 / UL 248.13
  • IEC: 60269.1 / 60269.4
  • Reach Declaration Available Upon Request
  • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% ROHS REACH
Bolted GFEVT1000-315B-74E 315A 3# 8,550 48,500 120 ● ●
GFEVT1000-350B-74E 350A 3# 12,150 68,640 125 ● ●
GFEVT1000-400B-74E 400A 3# 17,550 99,150 133 ● ●
GFEVT1000-450B-74E 450A 3# 27,900 157,600 145 ● ●
GFEVT1000-500B-74E 500A 3# 35,100 198,315 155 ● ●
GFEVT1000-550B-74E 550A 3# 49,500 279,675 163 ● ●
GFEVT1000-630B-74E 630A 3# 75,150 424,600 172 ● ●
GFEVT1000-700B-74E 700A 3# 103,500 625,700 185 ● ●
GFEVT1000-800B-74E 800A 3# 185,500 1,001,700 195 ● ●
GFEVT1000-900B-74E 900A 3# 274,500 1,454,850 203 ○ ○
GFEVT1000-1000B-74E 1000A 3# 405,000 2,126,500 210 ○ ○
GFEVT1000-1100B-74E 1100A 3# 517,500 2,696,500 225 ○ ○
* GFEVT1000-1250B-74E * 1250A 3# 729,000 3,717,900 240 ○ ○
* GFEVT1000-1400B-74E * 1400A 3# 1,125,000 5,512,500 265 ○ ○
Connect Part No. Fuse Amps Size Average @50KA/1000Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100% ROHS REACH
Customize GFEVT1000-315K-74E 315A 3# 8,550 48,500 120 ● ●
GFEVT1000-350K-74E 350A 3# 12,150 68,640 125 ● ●
GFEVT1000-400K-74E 400A 3# 17,550 99,150 133 ● ●
GFEVT1000-450K-74E 450A 3# 27,900 157,600 145 ● ●
GFEVT1000-500K-74E 500A 3# 35,100 198,315 155 ● ●
GFEVT1000-550K-74E 550A 3# 49,500 279,675 163 ● ●
GFEVT1000-630K-74E 630A 3# 75,150 424,600 172 ● ●
GFEVT1000-700K-74E 700A 3# 103,500 625,700 185 ● ●
GFEVT1000-800K-74E 800A 3# 185,500 1,001,700 195 ● ●
GFEVT1000-900K-74E 900A 3# 274,500 1,454,850 203 ○ ○
GFEVT1000-1000K-74E 1000A 3# 405,000 2,126,500 210 ○ ○
GFEVT1000-1100K-74E 1100A 3# 517,500 2,696,500 225 ○ ○
* GFEVT1000-1250K-74E * 1250A 3# 729,000 3,717,900 240 ○ ○
* GFEVT1000-1400K-74E * 1400A 3# 1,125,000 5,512,500 265 ○ ○
