GFEVT1500-59E 高速熔斷器 100A-400A 1500Vdc

[附件: Download]

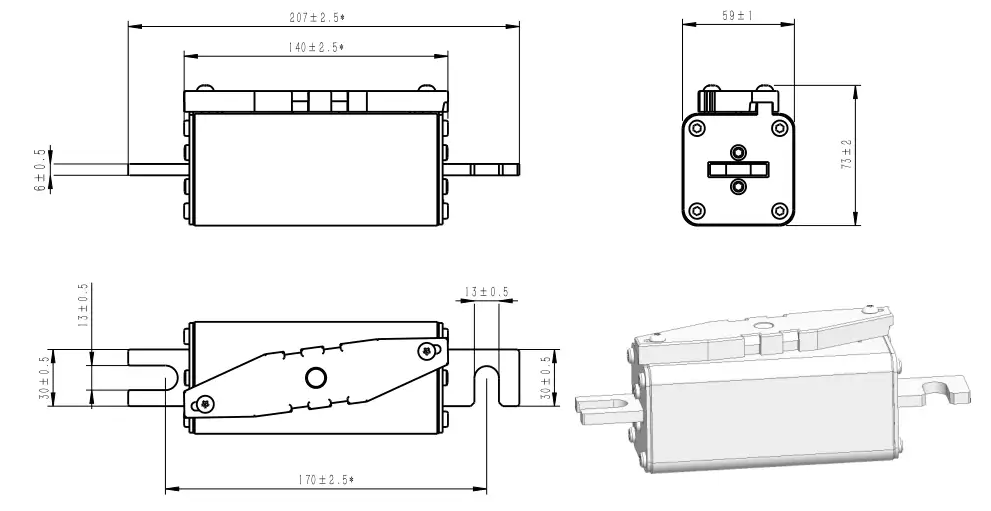

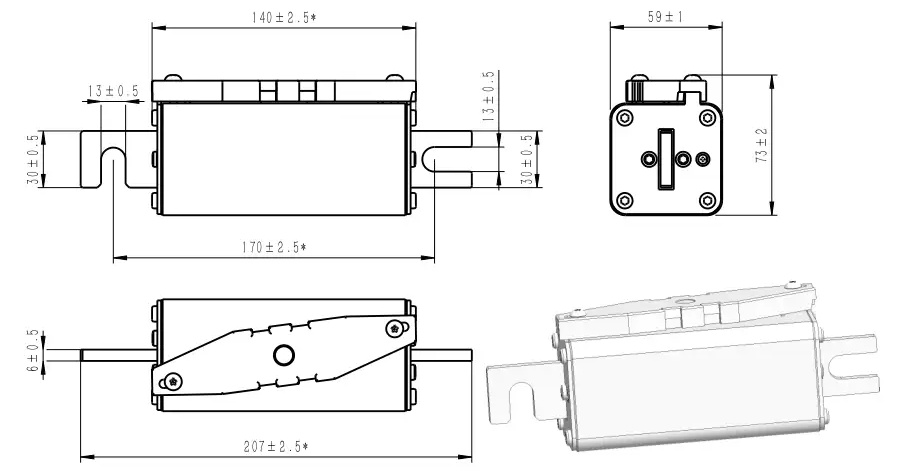

Dimensions (mm)


Bolted xxxB-59E


Din xxxU-59E


Description



  • Design For DC Applications
  • Excellent DC Performance
  • Superior Cycling Capability
  • Low Watt Losses

Standards / Approvals

  • Refer To UL 248.1 / UL 248.13
  • IEC 60269.1 / IEC 60269.4
  • Reach Declaration Available Upon Request
  • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Average @250KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 80% 100% ROHS REACH
Bolted GFEVT1500-100B-59E 100A 3085 8568 43 55 ● ●
GFEVT1500-125B-59E 125A 4746 13182 47 60 ● ●
GFEVT1500-160B-59E 160A 7415 20597 53 68 ● ●
GFEVT1500-200B-59E 200A 11547 31208 69 86 ● ●
GFEVT1500-250B-59E 250A 18720 50594 86 108 ● ●
GFEVT1500-315B-59E 315A 31897 86207 102 128 ● ●
GFEVT1500-350B-59E 350A 42423 114556 110 137 ● ●
GFEVT1500-400B-59E 400A 61039 164970 122 153 ● ●
Connect Part No. Fuse Amps Average @250KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 80% 100% ROHS REACH
Din GFEVT1500-100U-59E 100A 3085 8568 43 55 ● ●
GFEVT1500-125U-59E 125A 4746 13182 47 60 ● ●
GFEVT1500-160U-59E 160A 7415 20597 53 68 ● ●
GFEVT1500-200U-59E 200A 11547 31208 69 86 ● ●
GFEVT1500-250U-59E 250A 18720 50594 86 108 ● ●
GFEVT1500-315U-59E 315A 31897 86207 102 128 ● ●
GFEVT1500-350U-59E 350A 42423 114556 110 137 ● ●
GFEVT1500-400U-59E 400A 61039 164970 122 153 ● ●
Connect Part No. Fuse Amps Average @250KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 80% 100% ROHS REACH
Customize GFEVT1500-100K-59E 100A 3085 8568 43 55 ● ●
GFEVT1500-125K-59E 125A 4746 13182 47 60 ● ●
GFEVT1500-160K-59E 160A 7415 20597 53 68 ● ●
GFEVT1500-200K-59E 200A 11547 31208 69 86 ● ●
GFEVT1500-250K-59E 250A 18720 50594 86 108 ● ●
GFEVT1500-315K-59E 315A 31897 86207 102 128 ● ●
GFEVT1500-350K-59E 350A 42423 114556 110 137 ● ●
GFEVT1500-400K-59E 400A 61039 164970 122 153 ● ●
