GFEVT1500-59ES高速熔斷器100A-630A 1500Vdc


[附件: Download]

Dimensions (mm)

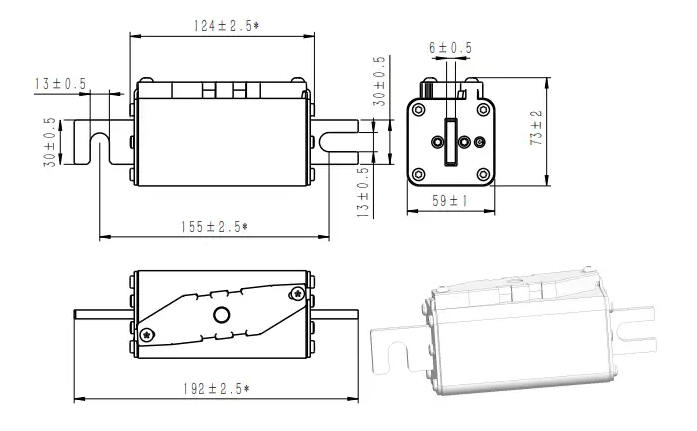

Bolted xxxB-59ES Dimensions

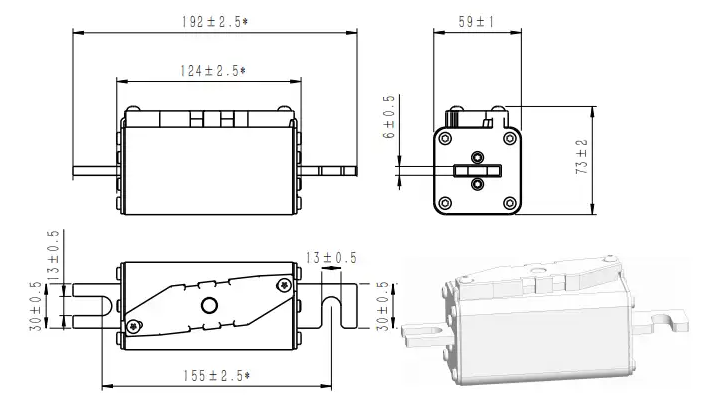

Din xxxU-59ES Dimensions

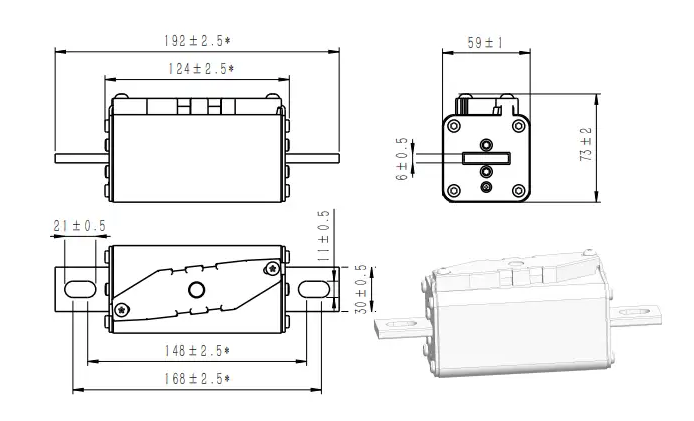

Customize xxxK-59ES Dimensions

Description



  • Design For DC Applications
  • Excellent DC Performance
  • Superior Cycling Capability
  • Low Watt Losses

Standards / Approvals

  • Refer To UL 248.1 / UL 248.13
  • IEC 60269.1 / IEC 60269.4
  • Reach Declaration Available Upon Request
  • UL, TUV
  • RoHS Compliant

Features & Benefits

  • Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage.
  • Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components.
  • Greater ampacity within sizing guidelines.
  • Excellent power of resisting voltaic impingement and environmental temperature tolerance.
  • Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Average @50KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 80% 100% ROHS
Bolted GFEVT1500-100B-59ES 100A 2370 8857 41 53 ●
GFEVT1500-125B-59ES 125A 4890 13219 47 60 ●
GFEVT1500-160B-59ES 160A 7192 19440 50 64 ●
GFEVT1500-200B-59ES 200A 11066 29907 68 86 ●
GFEVT1500-250B-59ES 250A 17940 48480 86 107 ●
GFEVT1500-315B-59ES 315A 30568 82610 102 127 ●
GFEVT1500-350B-59ES 350A 40655 109878 109 136 ●
GFEVT1500-400B-59ES 400A 58496 158090 121 151 ●
GFEVT1500-450B-59ES 450A 78890 213215 128 161 ○
GFEVT1500-500B-59ES 500A 101503 274330 139 174 ○
GFEVT1500-550B-59ES 550A 125982 340490 155 194 ○
GFEVT1500-630B-59ES 630A 185020 500100 162 203 ○
Connect Part No. Fuse Amps Average @50KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 80% 100% ROHS
Din GFEVT1500-100U-59ES 100A 2370 8857 41 53 ●
GFEVT1500-125U-59ES 125A 4890 13219 47 60 ●
GFEVT1500-160U-59ES 160A 7192 19440 50 64 ●
GFEVT1500-200U-59ES 200A 11066 29907 68 86 ●
GFEVT1500-250U-59ES 250A 17940 48480 86 107 ●
GFEVT1500-315U-59ES 315A 30568 82610 102 127 ●
GFEVT1500-350U-59ES 350A 40655 109878 109 136 ●
GFEVT1500-400U-59ES 400A 58496 158090 121 151 ●
GFEVT1500-450U-59ES 450A 78890 213215 128 161 ○
GFEVT1500-500U-59ES 500A 101503 274330 139 174 ○
GFEVT1500-550U-59ES 550A 125982 340490 155 194 ○
GFEVT1500-630U-59ES 630A 185020 500100 162 203 ○
Connect Part No. Fuse Amps Average @50KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 80% 100% ROHS
Customize GFEVT1500-100K-59ES 100A 2370 8857 41 53 ●
GFEVT1500-125K-59ES 125A 4890 13219 47 60 ●
GFEVT1500-160K-59ES 160A 7192 19440 50 64 ●
GFEVT1500-200K-59ES 200A 11066 29907 68 86 ●
GFEVT1500-250K-59ES 250A 17940 48480 86 107 ●
GFEVT1500-315K-59ES 315A 30568 82610 102 127 ●
GFEVT1500-350K-59ES 350A 40655 109878 109 136 ●
GFEVT1500-400K-59ES 400A 58496 158090 121 151 ●
GFEVT1500-450K-59ES 450A 78890 213215 128 161 ○
GFEVT1500-500K-59ES 500A 101503 274330 139 174 ○
GFEVT1500-550K-59ES 550A 125982 340490 155 194 ○
GFEVT1500-630K-59ES 630A 185020 500100 162 203 ○
