GFEVT1500-A-74E 高速熔斷器100A-1200A 1500VDC

[附件: Download]

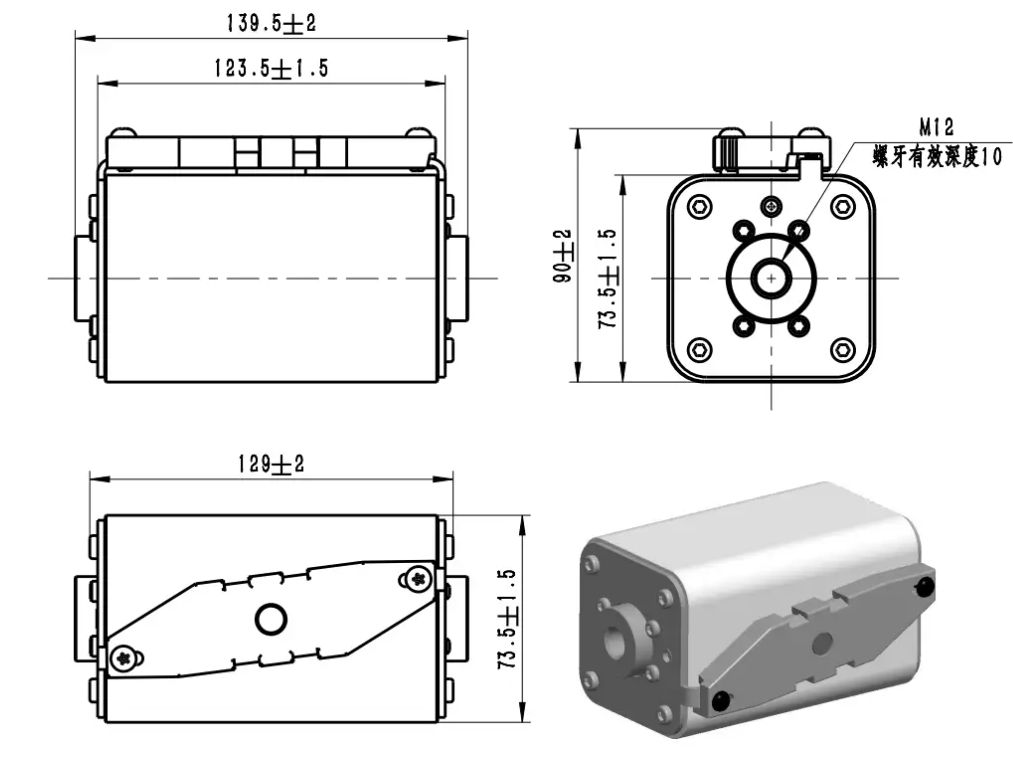

Dimensions (mm)


Description


  • Design For Dc Applications
  • Excellent Dc Performance
  • Superior cycling capability
  • Low Watt Losses

Standards / Approvals

  • Refer To UL 248.1/UL 248.13
  • IEC 60269.1/IEC 60269.4
  • Reach Declaration Available Upon Request
  • RoHS Compliant

Features & benefits

Higher voltage rating provides overall system efficiency using smaller, more economical conductors while meeting the needs of higher voltage. Up to ten times faster opening under high fault current conditions helps assure reliable protection of circuits and components. Greater ampacity within sizing guidelines, Excellent power of resisting voltaic impingement and environment temperature tolerance, Excellent resistance to mechanical vibration and impact resistance.

Fuse Ratings

Connect Part No. Fuse Amps Size Average @250KA/1500Vdc Power Loss (W) Approvals
A2s Melting A2t Clearing 100%

Flush-end contact GFEVT1500-100A-74E 100A 3# 1,121 4,535 60 ● ●
GFEVT1500-125A-74E 125A 3# 1,706 8,091 68 ● ●
GFEVT1500-160A-74E 160A 3# 3,705 13,566 90 ● ●
GFEVT1500-200A-74E 200A 3# 5,070 22,772 110 ● ●
GFEVT1500-250A-74E 250A 3# 10,140 43,605 120 ● ●
GFEVT1500-315A-74E 315A 3# 20,604 73,644 136 ● ●
GFEVT1500-350A-74E 350A 3# 28,309 100,441 148 ● ●
GFEVT1500-400A-74E 400A 3# 37,320 130,559 171 ● ●
GFEVT1500-450A-74E 450A 3# 52,570 186,198 187 ● ●
GFEVT1500-500A-74E 500A 3# 71,128 250,479 204 ● ●
GFEVT1500-550A-74E 550A 3# 89,014 306,195 221 ● ●
GFEVT1500-630A-74E 630A 3# 125,840 422,594 248 ● ●
GFEVT1500-700A-74E 700A 3# 174,518 573,595 273 ● ●
GFEVT1500-800A-74E 800A 3# 271,019 863,105 294 ● ●
GFEVT1500-900A-74E 900A 3# 389,563 1,192,378 305 ○ ○
GFEVT1500-1000A-74E 1000A 3# 523,585 1,549,528 362 ○ ○
*GFEVT1500-1100A-74E * 1100A 3# 719,385 2,056,080 385 ○ ○
* GFEVT1500-1200A-74E * 1200A 3# 973,208 2,682,900 391 ○ ○
